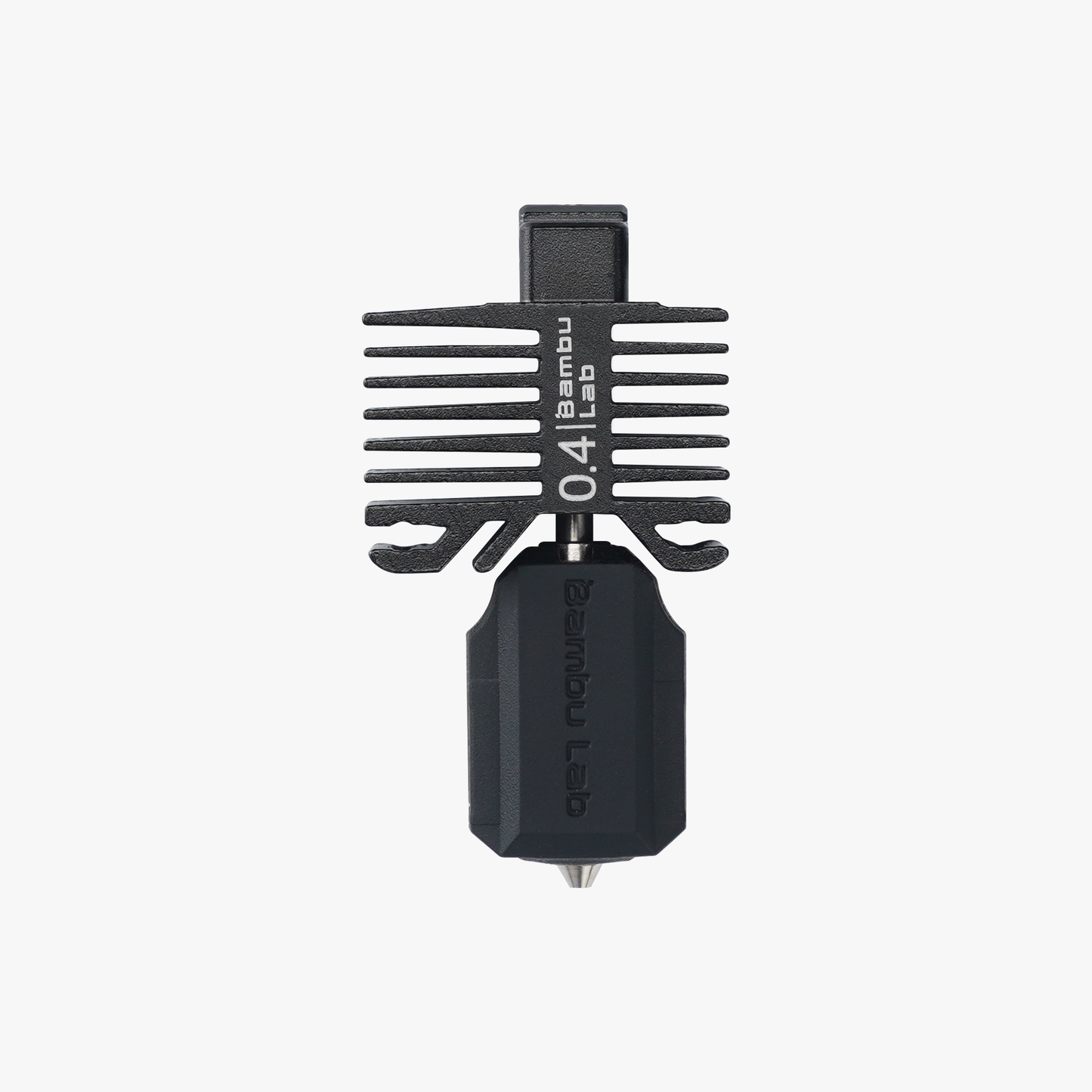

Bamboo Hotend - A1 Series
Quick-change nozzle – easy and precise replacement
The special design of the hotend heating unit makes it easy to separate the thermal and electronic components. An integrated magnetic block on the hotend heatsink ensures quick and precise mounting in the correct position. This feature makes it easy and efficient to replace the hotend without the use of tools, saving time and reducing downtime.
Note: Always ensure that the hot end has cooled down completely before making a replacement. Avoid touching the heating block (the bottom part of the hot end) to minimize the risk of burns.
0.2 mm Nozzle – Optimal detail and precision
The small diameter of 0.2 mm enables the extrusion of extra thin filament strands. This provides high resolution and excellent surface detail on the horizontal print surface – ideal for precise and detailed 3D prints.
0.6 mm and 0.8 mm Nozzle – Increased print speed
With a larger diameter, the nozzle can extrude more filament per second, resulting in significantly faster print speeds. Perfect for larger models or when efficiency is a concern.
Comparison of different nozzle types for 3D printers
| Nozzle size | 0.2mm | 0.4mm | 0.6mm | 0.8mm |
|---|---|---|---|---|
| Application | Perfect for small and detailed models – high precision where the result is worth the wait | Ideal for everyday use – a good balance between speed and quality | Faster printing and suitable for high-performance filaments – slight drop in resolution | Very fast printing – suitable for high-performance filaments – less detail |
| Typical areas of use | Miniature models, fine logos, text and small shapes | Toys, mechanical parts, decorative objects | Large structural parts, functional household components, industrial and technical items | Large structural parts, functional household components, industrial and technical items |
Compatibility between filament and nozzle size
| Material | 0.2mm nozzle | 0.4mm nozzle | 0.6mm nozzle | 0.8mm nozzle | Requires hardened steel? |
|---|---|---|---|---|---|
| Regular PLA | YES | YES | YES | YES | Optional |
| PLA with glitter (Sparkle) | *①NO | YES | YES | YES | Optional |
| PLA with marble effect | *①NO | YES | YES | YES | Optional |
| Wood, stone or metal filled PLA | *①NO | YES | YES | YES | Optional |
| PETG | YES | YES | YES | YES | Optional |
| PVA | YES | YES | YES | YES | Optional |
| ABS | YES | YES | YES | YES | Optional |
| ASA | YES | YES | YES | YES | Optional |
| PC | YES | YES | YES | YES | Optional |
| PA (Nylon) | *①NO | YES | YES | YES | Optional |
| TPU | *①NO | YES | YES | YES | Optional |
| Bamboo PLA-CF | *①NO | *②Recommended | YES | YES | Required |
| Bamboo PETG-CF | *①NO | *②Recommended | YES | YES | Required |
| Bamboo PAHT-CF | *①NO | YES | *③Recommended | YES | Required |
| Bamboo PET-CF | *①NO | YES | *③Recommended | YES | Required |
| CF/GF filaments (other brands) | *①NO | Not recommended | YES | YES | Required |
[Note]
-
① Filaments with carbon fiber, fiberglass, metal or other inorganic particles have an increased risk of clogging when using a 0.2 mm nozzle.
-
② Bambu PLA-CF and Bambu PETG-CF have been thoroughly tested and have shown a low risk of clogging when printed with a 0.4 mm hardened steel nozzle – while achieving high print quality.
-
③ For general carbon fiber and fiberglass filaments, such as Bambu PAHT-CF and Bambu PET-CF, it is recommended to use a 0.6mm hardened steel nozzle to minimize the risk of clogging and wear.
Read more about filament compatibility and hotend nozzle replacement on the Bambu Lab Wiki.
Video - how to replace a complete hotend
Replacing the hotend
Read more about how to replace the complete hotend and hotend module on the Bambu Lab Wiki.
Package contents
Complete Hotend (for P1 series):
-
1 × Complete hotend (P1 series)
-
2 × M3-14 step screws
-
1 × Silicone sock
-
1 × Thermal paste
-
1 × Locking clip
Hotend (standard):
-
1 × Hotend
-
2 × M3-14 step screws
Product specifications
| Property | Complete Hotend | Hotend |
|---|---|---|
| Max. print temperature | 320 °C | 320 °C |
| Length | 47.3mm | 47.3mm |
| Packaging weight | 40g | 30g |
| Packaging size | 190 × 70 × 50mm | 190 × 70 × 50mm |
